Include RMAN log monitoring in the VBR Console to allow real-time tracking during Oracle Database backup and restoration

[mark.tagle]

The discrepancy in Oracle Database backup statistics within the VBR Console 13.0 occurs during both backup and restoration. Currently, the console does not display the real-time RMAN logs for the database backup and restoration process. We kindly request that this feature be updated to capture and present these RMAN logs in the VBR Console 13.0 in real-time, providing us with a single pane of glass for monitoring.

Current Environment:
IBM AIX Machine
Installed - VeeamAgentAIX-13.0.1.2030-ppc64.tar.gz [Package came from VBR 13.0 Protection Group]
Installed - VeeamPluginforOracleRMAN-13.0.1.180-1.aix6.1ppc.rpm [RPM Package came from .ISO]
Repository:
1. Veeam Hardened Repository #1 Same Location
2. Veeam Hardened Repository #2 Offsite Location
3. Cloud Repository

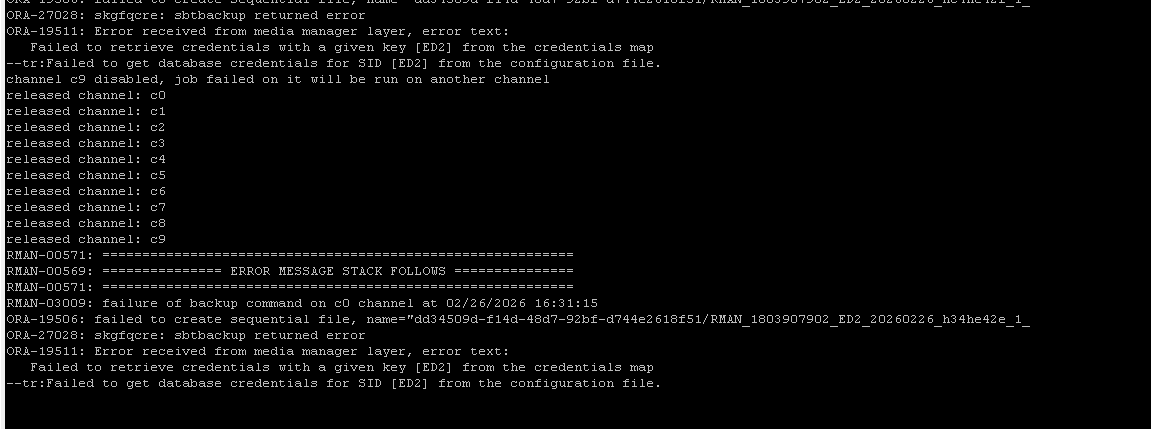

Oracle RMAN Database Restoration Log have an error

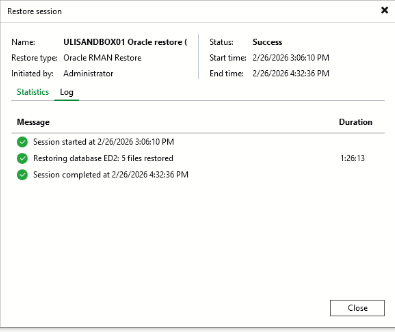

In VBR Console 13.0, the Oracle Database restoration is marked as 'Success'; however, there are errors in the RMAN logs that indicate a discrepancy with the console and OS Level monitoring.




Restore Control File Command:

RUN{
ALLOCATE CHANNEL c0 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
SET CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE 'SBT_TAPE' TO '%F_RMAN_AUTOBACKUP.vab';
RESTORE until time 'sysdate-1' CONTROLFILE FROM AUTOBACKUP maxdays 30;
}

alter database mount;

Restore Oracle Database Command:

RUN{
ALLOCATE CHANNEL c0 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
ALLOCATE CHANNEL c1 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
ALLOCATE CHANNEL c2 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
ALLOCATE CHANNEL c3 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
ALLOCATE CHANNEL c4 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
ALLOCATE CHANNEL c5 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
ALLOCATE CHANNEL c6 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
ALLOCATE CHANNEL c7 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
ALLOCATE CHANNEL c8 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
ALLOCATE CHANNEL c9 DEVICE TYPE SBT_TAPE
PARMS 'SBT_LIBRARY=/opt/veeam/VeeamPluginforOracleRMAN/libOracleRMANPlugin.so';
SEND 'srcBackup=afb153b3-d453-4aa1-9d32-e2582a1a6e50';
RESTORE DATABASE;
RECOVER DATABASE;
}
